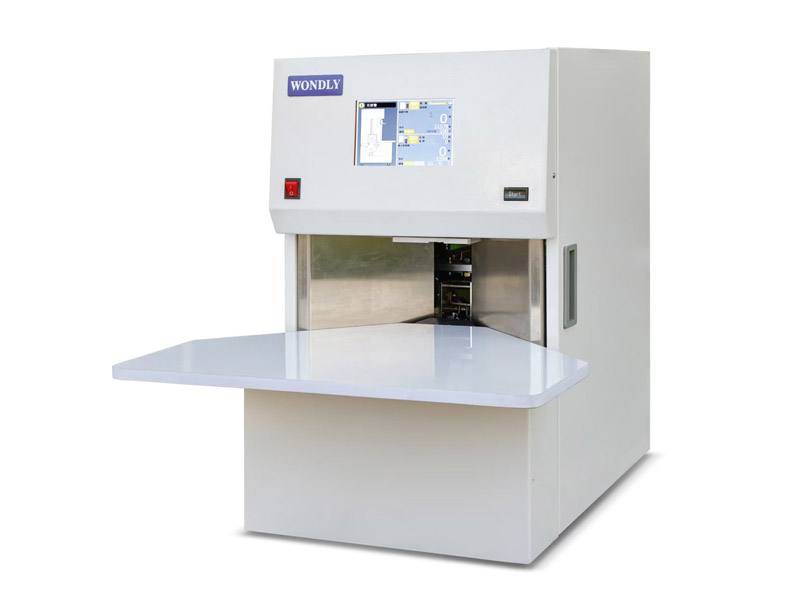

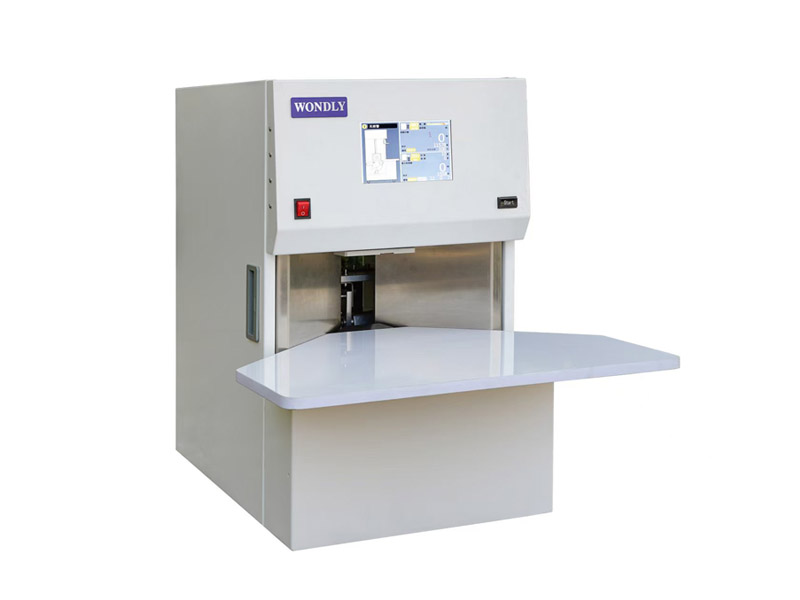

WDLSZJ-3 Automatic paper counting machine is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops.
Model：WDLSZJ-3 Automatic paper counting machine
Factory: Made in China
Wondly Machinery is the China professional manufacturer of Office paper counting machine
| >> Details of Automatic paper counting machine |
1.The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. Adopt the
international most advanced module sports computer system technology 、intuitive and simple user-machine interface
2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.
3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;The specified number counting function is for sorting out the required number of paper from the paper-pile
4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
5.It has a paper label fast changing structure
| >> Professional Automatic paper counting machine manufacturer |
Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.
There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.
| >> Product Detail Images |

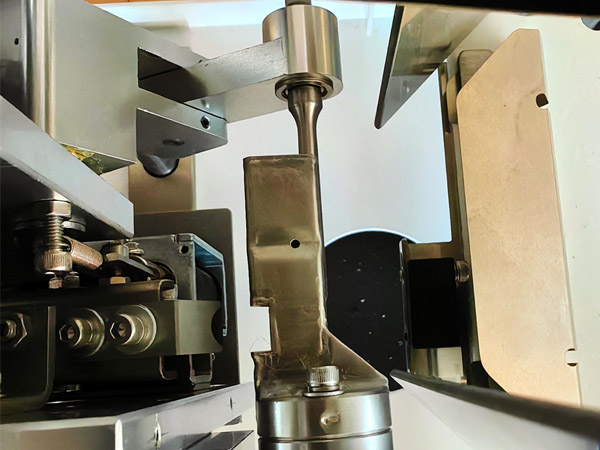

Paper head structure

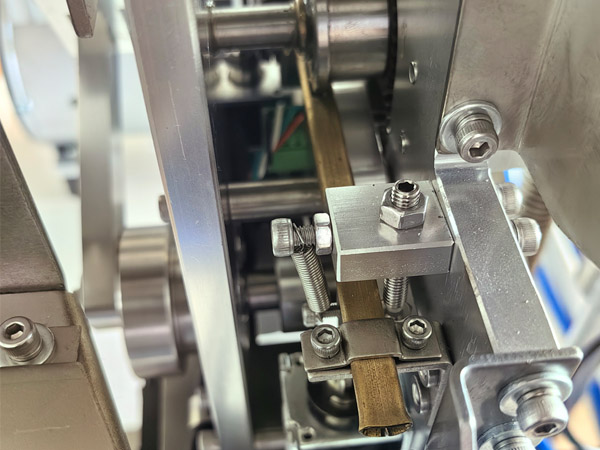

Send label structure

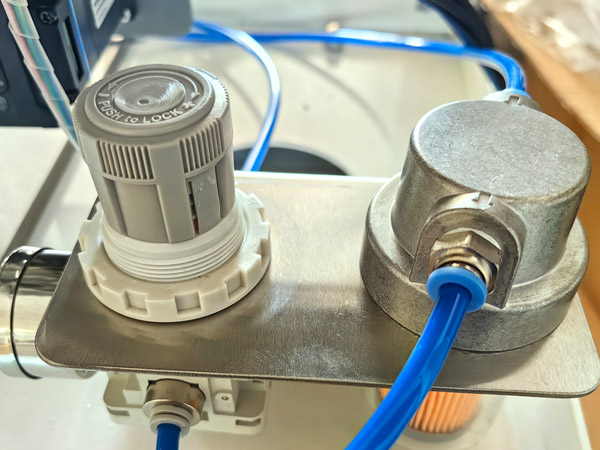

Regulating valves and filters

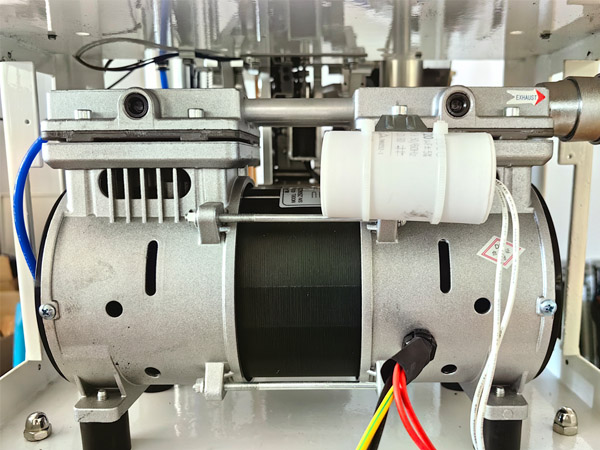

vacuum pump
| >> Product Parameters |
paper thickness range
22～186kg（Carbon paper,offset printing paper,
coated paper,etc.）
paper size
Min.:
55x90mm Max.: 350x660mm
paper stacking height
130mm（Max）
Power Supply/voltage
AC220±10V、50Hz
Motor
0.4KW
Collecting table width
510X600mm
Collecting table width height
285mm
Machine size
840（W）X440（L）X690H）
Machine weight
75kg
High speed operation speed:
1200张/Min、
Label for paper in pile
Width 5mm、6mm Length 70m、100m
Consumed power ;
600W
