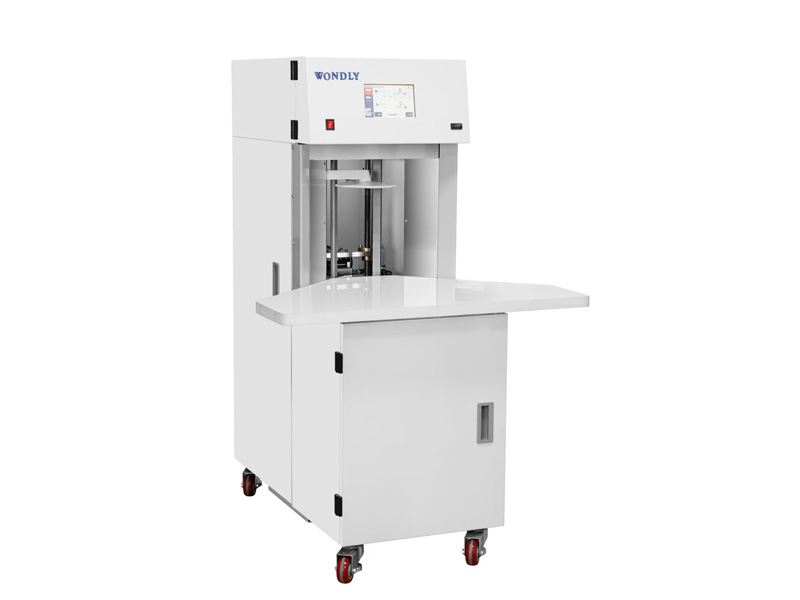

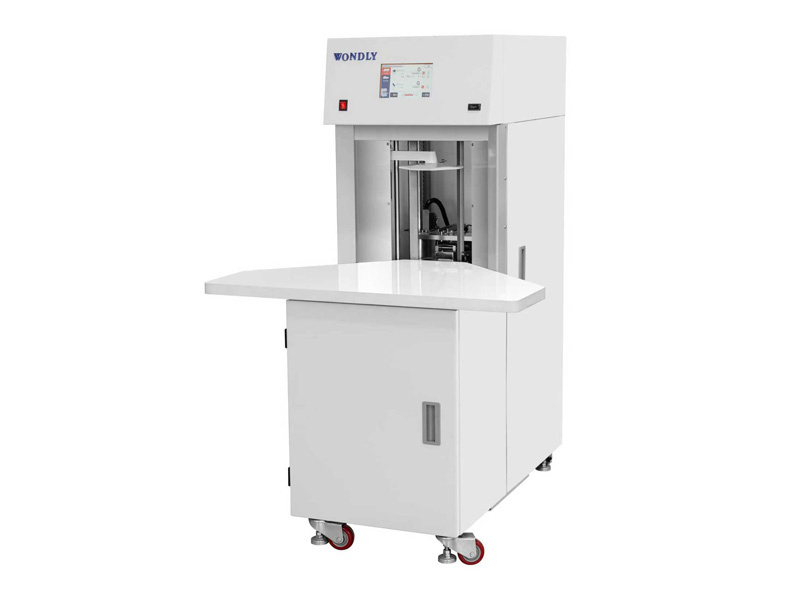

Fully automatic paper counting machine

WDLSZJ-5 Fully automatic paper counting machine is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops.
Model：WDLSZJ-5 Fully automatic paper counting machine

Factory: Made in China
Wondly Machinery is the China professional manufacturer of Office paper counting machine

>> Details of Fully automatic paper counting machine

1.The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. , Adopt the

international most advanced module sports computer system technology 、intuitive and simple user-machine interface

2. Any kind and any thickness of paper can be precise and high-speed counting .Different kinds of paper can be mixed counting simultaneously.

3. The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;

The specified number counting function is for sorting out the required number of paper from the paper-pile

4. Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.

5. It has a paper label fast changing structure

>> Professional Fully automatic paper counting machine manufacturer

Our Product

Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

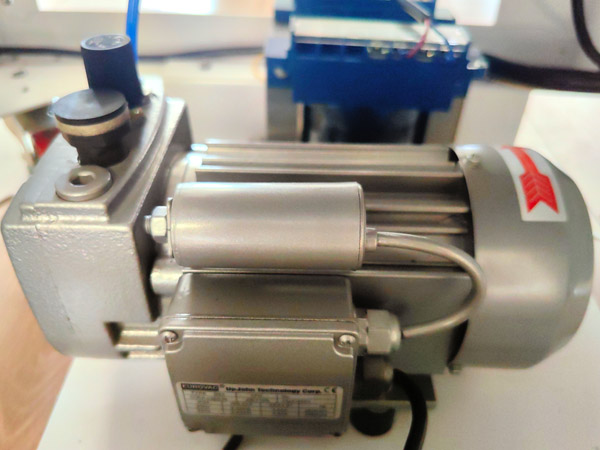

Taiwan vacuum pump

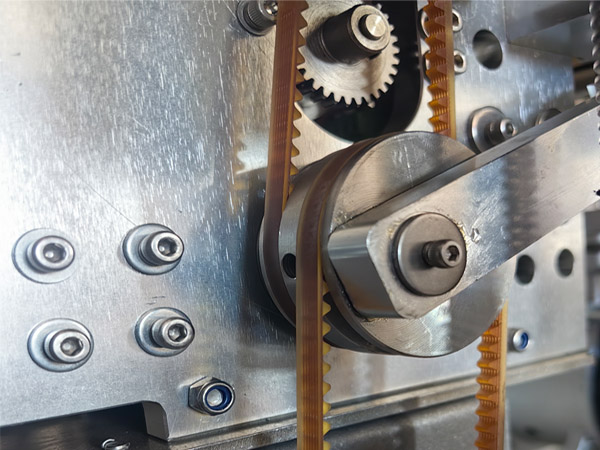

Original Japanese belt drive

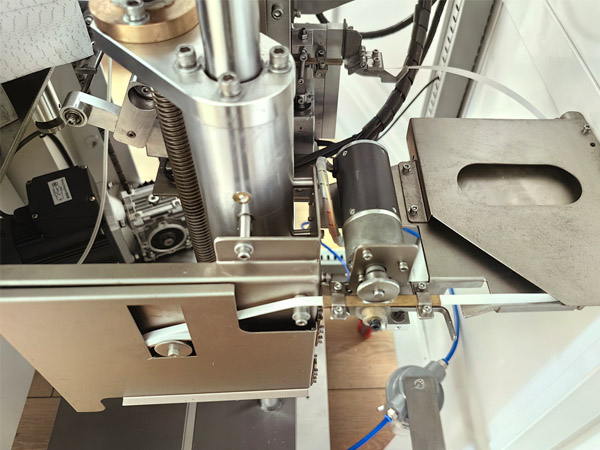

Send label structure

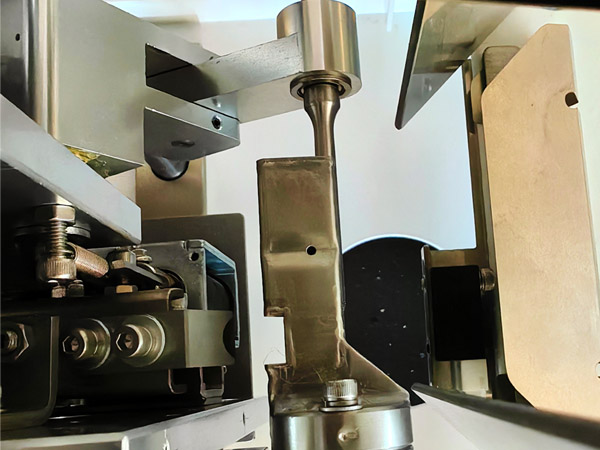

Paper head structure

>> Product Parameters

paper thickness range	22 ～ 210g/m （ Carbon paper,offset printing paper, coated paper,etc.）
paper size	Min.100X150mm、Max 546X788mm
paper stacking height	300mm（Max）
Power Supply/voltage	AC220±10V、50Hz
Collecting table width	580X900mm（
Collecting table width height	760mm
Machine size	900（W）X1080（L）X1500（H）
Machine weight	230kg
Label for paper in pile	Width 6mm、Length 100m
Consumed power	600W
