Program control Paper Cutting Machine

Program control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops

Model: QZYK1370DW Paper Cutting Machine

Wondly Machinery is the China professional manufacturer of paper cutting machine

>> Details of Program control Paper Cutting Machine

Main Performance :

1、Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.
2、The Taiwan AU15 -inch color LCD touch screen display
3、computer interface using user-friendly design, allows the operator to easily operate
4、Servois used as paper feeding system，and locateon presicion up to ±0.01mm
5、Paper Cutting Machine full machine control part of the main low-voltage electrical appliances imported Schneider.
6、Hydraulic some of the pressure adjustable.
7、The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.
8、chrome work platform, saving the user's maintenance time, extend its life.

9、Paper Cutting Machine work platform equipped with inflatable structures to facilitate the pushing of paper and feed.

10、with a highly reliable protection of the six groups of grating, ensuring operator safety.
11、hook-like structure mounted knife, make easy work tool changes.
12、high-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.
13、Worm gear drive mechanism, hydraulic clutch, mechanical brake

>> Professional paper cutting machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

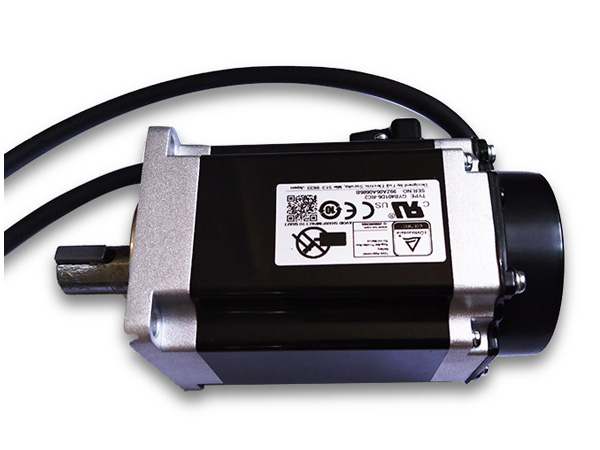

Imported service motor

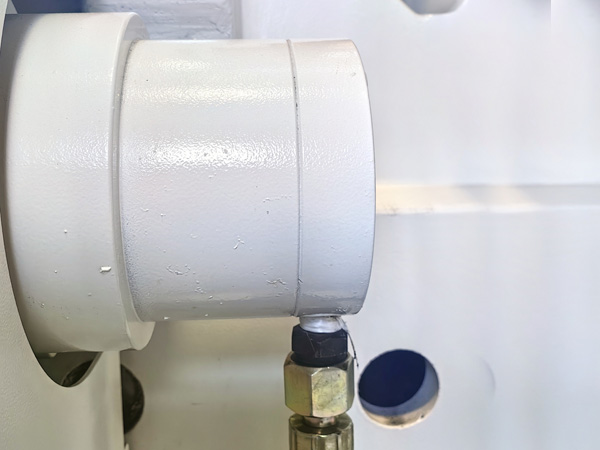

Dual hydraulic configuration

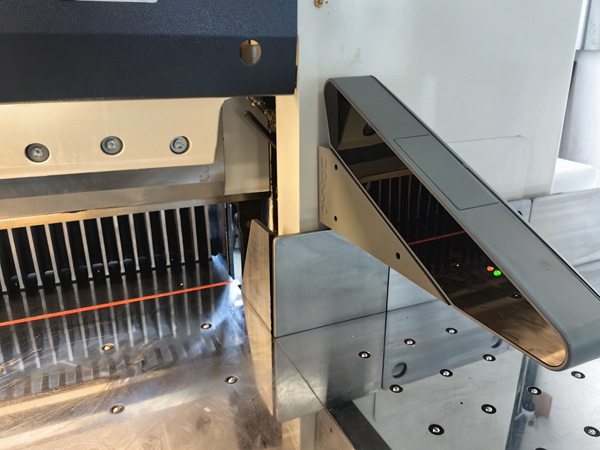

Safe infrared

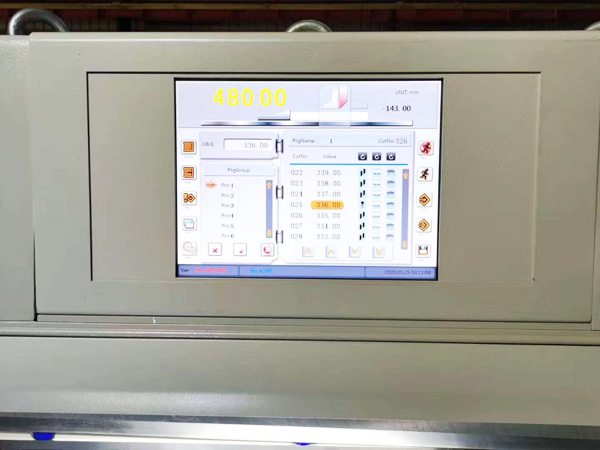

15 inch touch screen

>> Product Parameters

Cuttign width	137 CM
Cutting height	16.5 CM
Cutting length	145 CM
Main motor power	4 kw
Weight	4500 kg
width with sideway	330 CM
/	270 CM
Lehgth	277 CM
Table height	92 CM
Cutting speed	45 Times
Overall dimensions	295145200 CM
Voltage(three-phase)	361-399 V
Wire size	2.5 mm²
