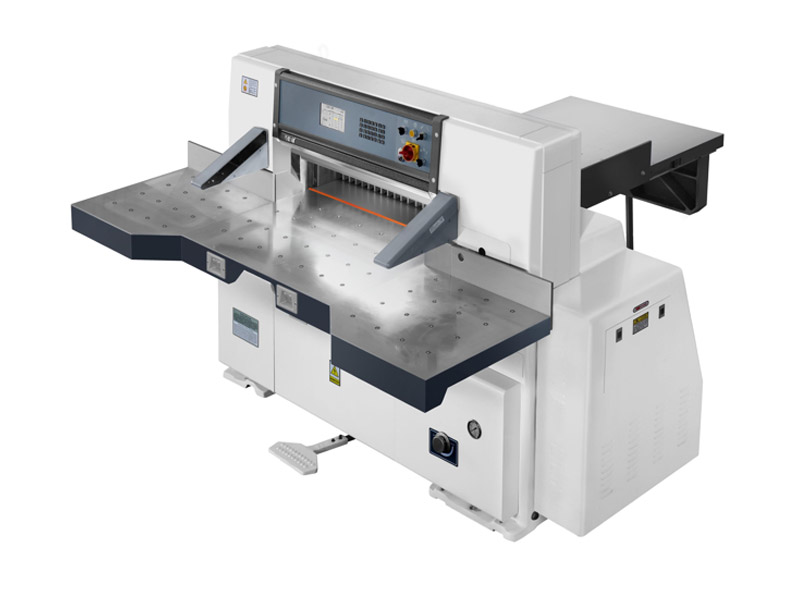

Paper Guillotine Machine


QZYK1700DF Paper Guillotine Machine

Paper Guillotine Machiner is used to cut the printing paper of various kinds, paper products, etc.



Inquiry

Detailed


Paper Guillotine Machine

Paper Guillotine Machiner is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops
Model: QZYK1700DF Paper Guillotine Machine
Factory: Made in China
Wondly Machinery  is the China professional manufacturer of paper cutting machine
Our company the country passed the ISO9001:2000 international quality control system authentication in 2004, in 2007 through the CE authentication.



    >> Details of Paper Guillotine Machiner

Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.

The Taiwan AU15 -inch color LCD touch screen display

Computer interface using user-friendly design, allows the operator to easily operate

Servois used as paper feeding system,and locateon presicion up to ±0.01mm

Full machine control part of the main low-voltage electrical appliances imported Schneider.

Hydraulic some of the pressure adjustable.

The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.

Chrome work platform, saving the user's maintenance time, extend its life.

Work platform equipped with inflatable structures to facilitate the pushing of paper and feed.

With a highly reliable protection of the six groups of grating, ensuring operator safety.

Hook-like structure mounted knife, make easy work tool changes.

High-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.

Worm gear drive mechanism, hydraulic clutch, mechanical brake


    >> Professional Paper Guillotine Machiner manufacturer


Our Product

Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine  etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.


Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.


    >> Product Detail Images

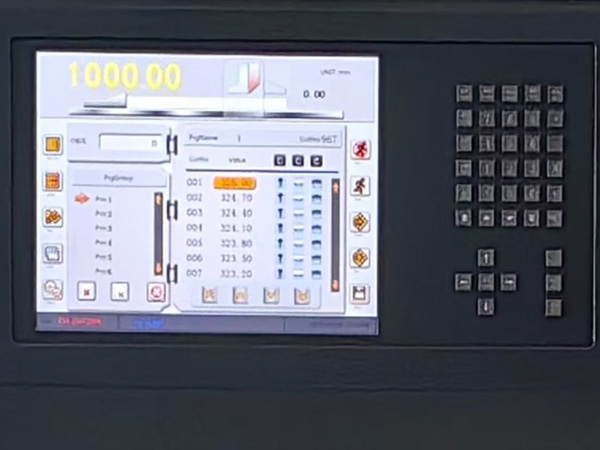

10.4 Touch screen

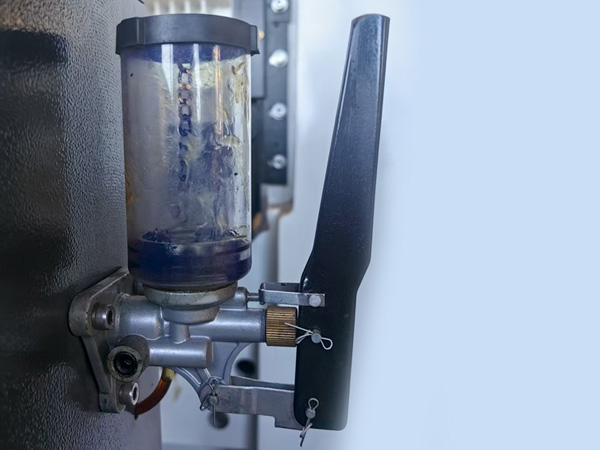

Centralized refueling on the workbench

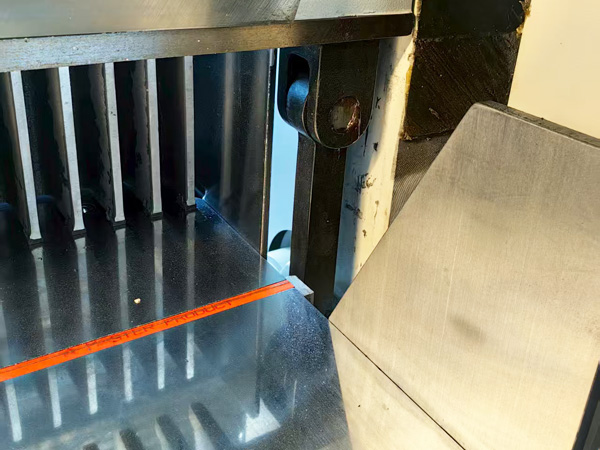

Vertical linkage of paper press

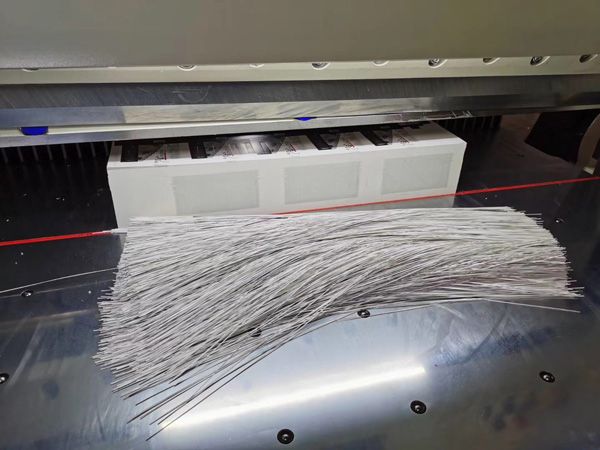

Cutting paper fibers




    >> Product Parameters


Cuttign width

170 cm

Cutting height

16.5 cm

Cutting length

170 cm

Main motor power

5.5 kw

Weight

6500 kg

Width with sideway

370 cm

/

315 cm

Lehgth

310 cm

Table height

90 cm

Cutting speed

45 times

Overall dimensions

325*160*220 cm

Voltage(three-phase)

361-399 V

Wire size

2.5 mm2
